APC Easy Modular Data Center – 27kW | 20ft ISO Container
426,000.00 $
| Colour: | White |
| Dimension: | 242.5 (L) x 609.6 (W) x 289.6 (h) cm |
| Power Capacity: | 27kW |
| Rack Configuration: | 5 |
| UPS System: | Integrated Single Feed | Overhead Cooling: | DX 400V | Electrical Distribution: | Fully Integrated | Container Design: | Rugged | Standard: | ISO European Standard |
Description

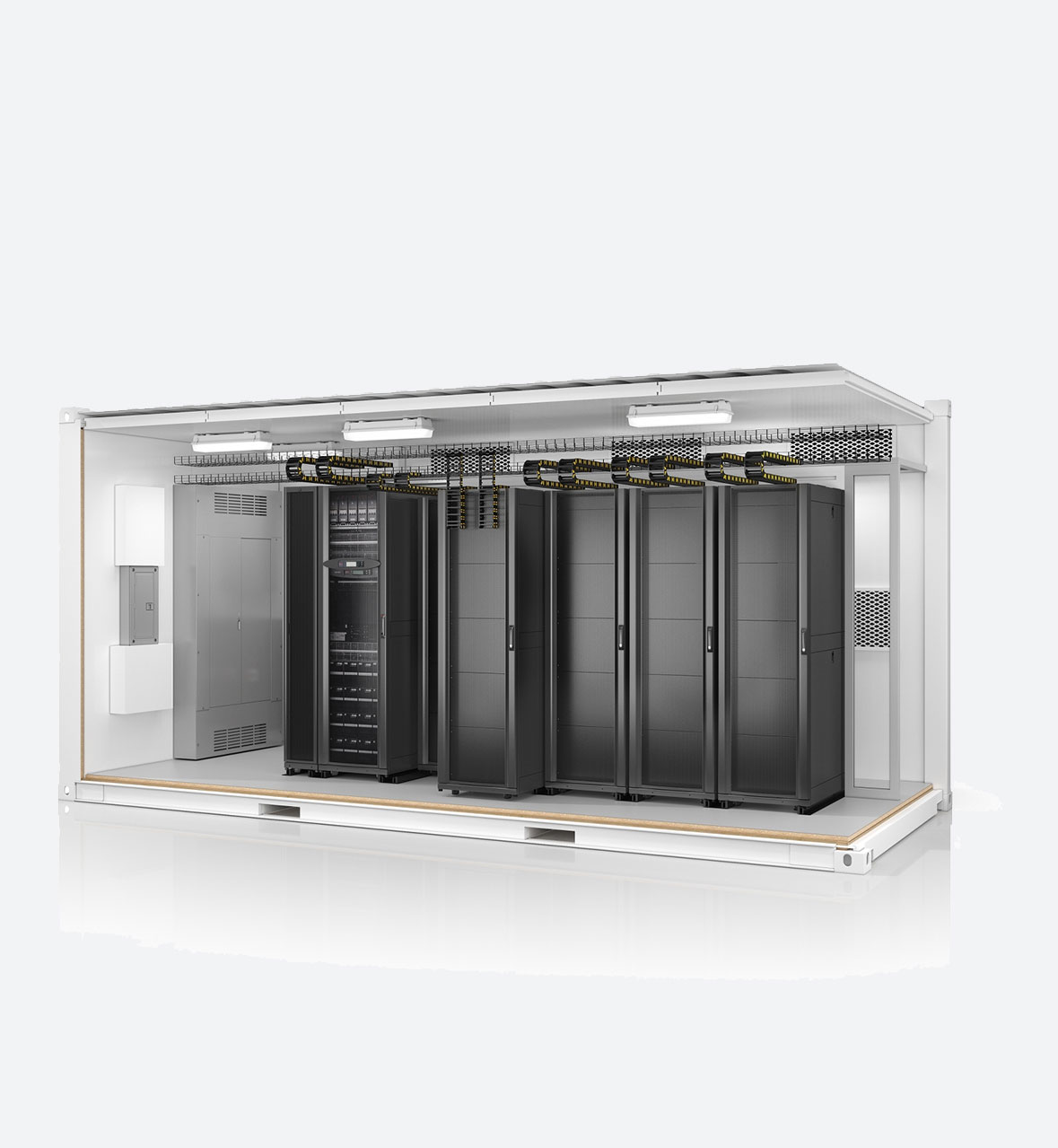

APC Easy Modular Data Center – 27kW | 20ft ISO Container
27kW | 5 Rack | Single Electrical Feed | Integrated UPS | Overhead DX Cooling – 400V
Looking for rapid deployment and maximum reliability? The Easy Modular Data Center – All-in-One 27kW (PFMICP027F1R005BD) by Schneider Electric is the ultimate turnkey solution for critical IT environments. Designed for fast implementation, this prefabricated containerized data center offers plug-and-play convenience, making it ideal for edge, industrial, or remote site installations.
Product Configuration:
- Fully configured solution including structured cabling and power panels.

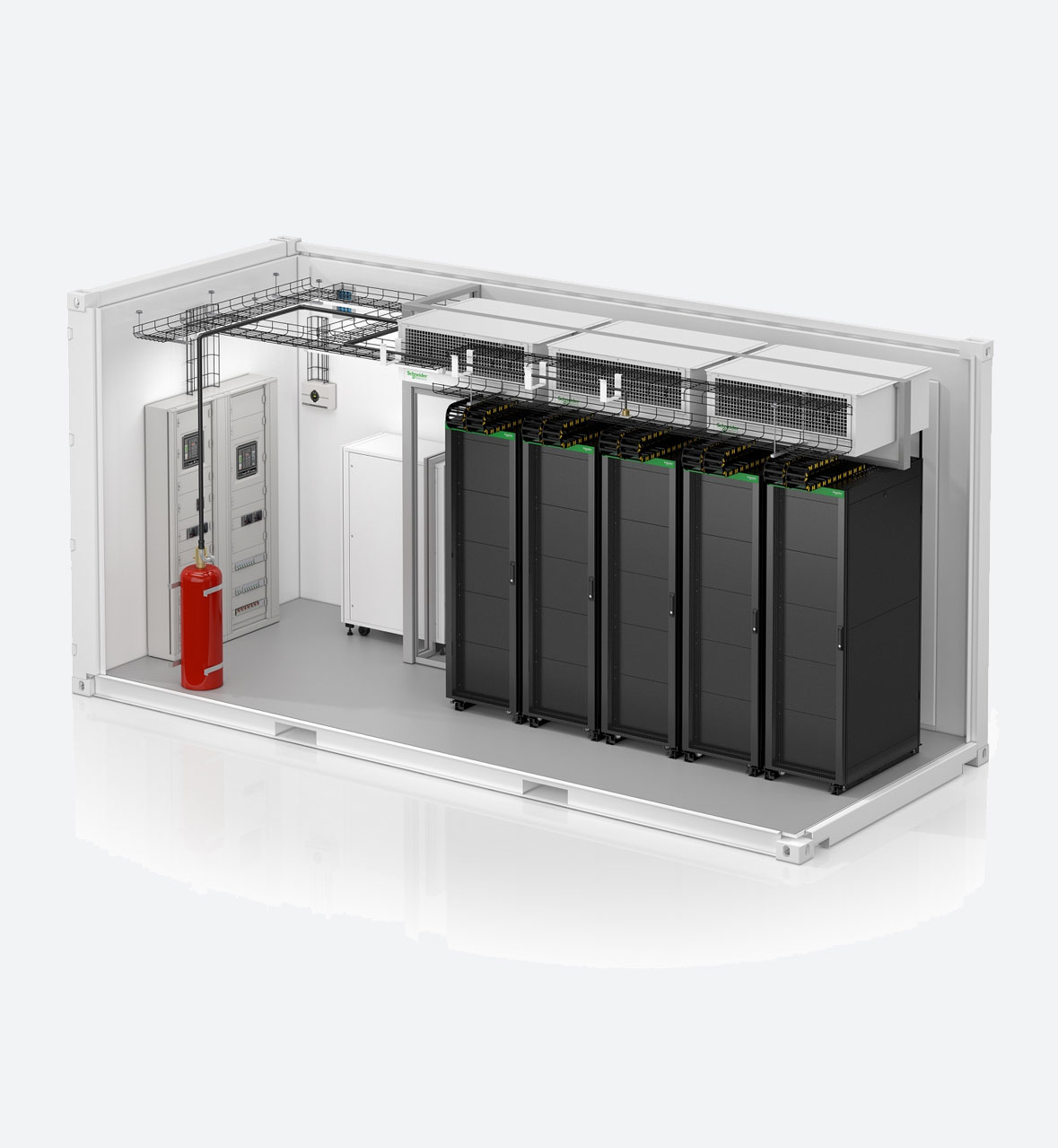

- SSC 20’ ISO container – Easy Prefab Container.
- 4 x 42U Racks (ER6202) supporting a total IT load of 27kW (approx. 6.7kW per rack) – TIER II alike design (no certification included).
- EASY UPS 2 x 30kVA in 2N configuration with UPS Network Management Card (18-minute runtime on built-in battery modules).

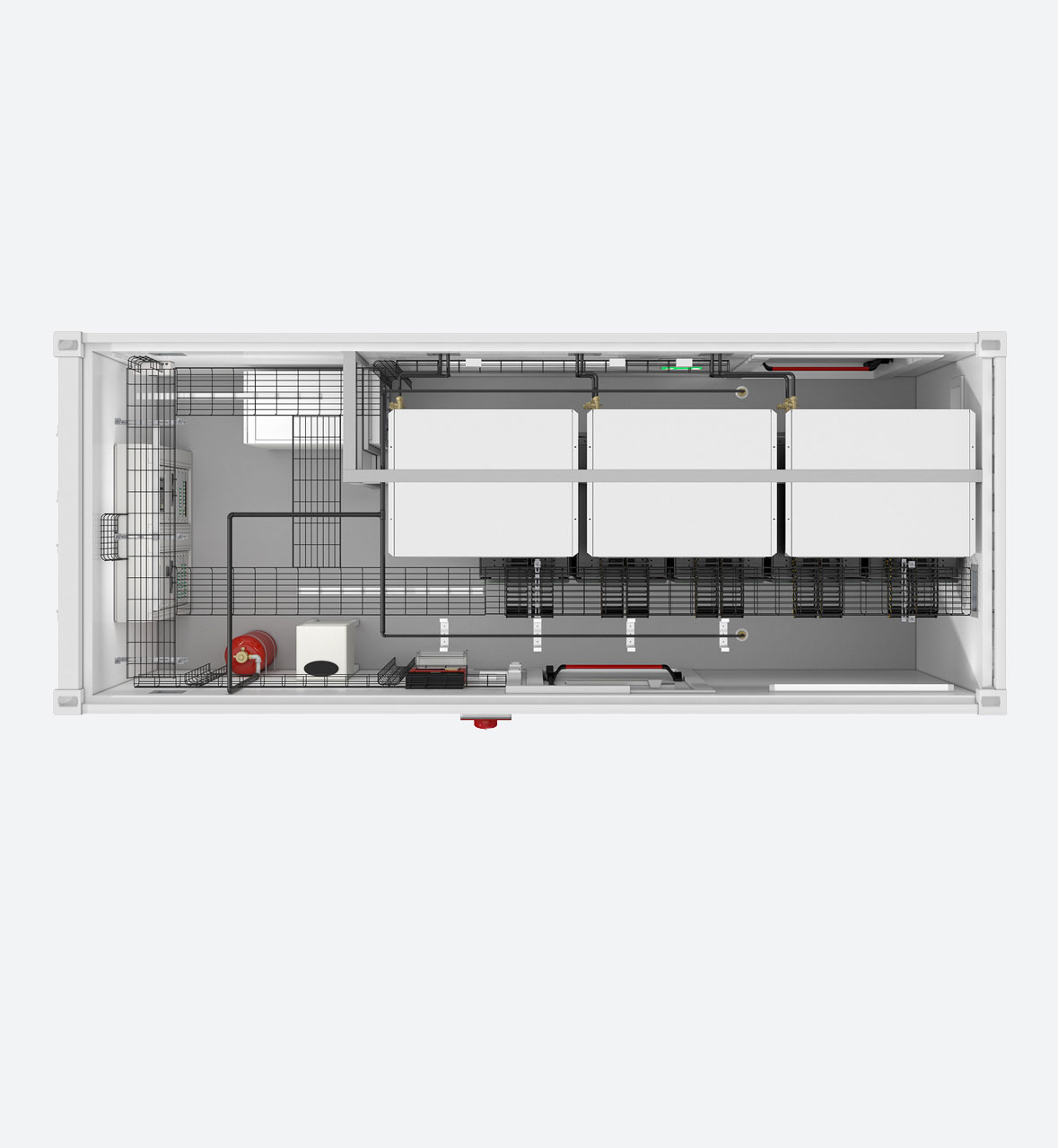

- Overhead DX Cooling Units: UCA0481 + MRA0611 (x3) with built-in humidifier and dehumidifier.
- Fire Protection: NOVEC1230 Fire Suppression System with Very Early Fire Detection (VESDA).
- DCIM Integration: EcoStruxure IT Expert for monitoring and management.
- Access Control: HID card-based system for secure entry.
- Environmental Monitoring: NetBotz monitoring system for temperature, humidity, and security breaches.
- Electrical System:
- ATS included in the electrical panel.
- 2N electrical distribution to all racks.
- Busbar system with EPDU1132M Metered, 32A, 230V (2 per rack).
- Approximate manufacturing lead time: 18–20 weeks (Ex-works Bangalore; final lead time to be confirmed prior to order).
- One-year manufacturer warranty included.
- Note: Site preparation and civil/electrical works must be carried out by the integration partner.
| Start-up as per manufacturer standard procedure is excluded, excluding any input/output power cabling & DC cabling, assembly services, earthing, switchgear, and civil works. |
| Factory Acceptance Test is not provided within our proposal and can be proposed upon request at a separate price. |
| Warranty for UPS is provided for one year from date of Start-UP or 16 months from the shipment, whichever comes first. |
| 16–18 weeks from date of confirmed PO to Schneider Electric / Order coming into force conditions. |
Benefits:
- Faster Deployment: Reduce site construction timelines by over 50% compared to traditional builds.
- Scalable & Modular: Easily expand as your business grows without reworking your infrastructure.
- Cost-Effective: Lowers CAPEX and OPEX with integrated systems and simplified installation.
- Remote Management-Ready: Compatible with EcoStruxure™ for smart monitoring and maintenance.
Ideal For:
- Edge Computing Sites
- Telecom & ISP Infrastructure
- Industrial Control Systems
- Disaster Recovery Sites
- Temporary or Mobile IT Installations
Additional information
| Weight | 6800 kg |
|---|---|
| Dimensions | 609.6 × 242.5 × 289.6 cm |
